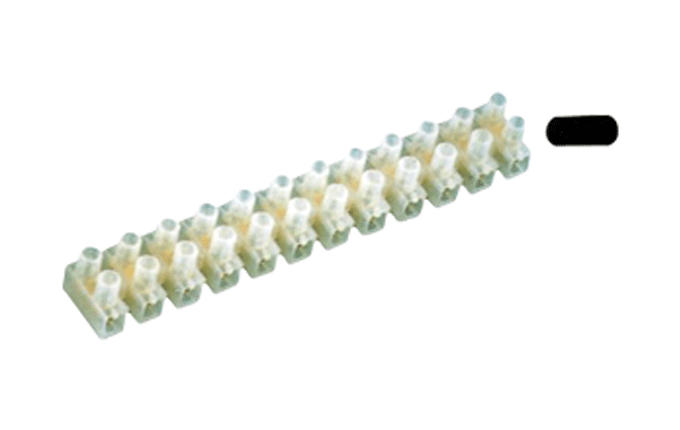

HFW Terminal connector

▲General Characteristics

Manufactured and tested according to international standards. Specially designed for electrical appliances,lighting fixtures, small transformers and for all kinds of all kinds of applications which require safety connetions and have the possibility of with standing high temperatures.Tight ing of the wire is made by captive screws placed at the top of the strip to leave free all the clamping part.All types can be supplied in the standard of 12 poles version in the number of poles required,starting form 2poles.

Ampere Cross sections Pole QTY/CTN CTN Size (cm) 3A 2.5/4mm2 12 1200pcs 40×19×30 5A 6mm2 12 1000pcs 44×24×31.5 6A 6mm2 12 1000pcs 46×22×28 10A 10mm2 12 800pcs 41×26.5×32.5 15A 12mm2 12 800pcs 37×27×28 20A 14mm2 12 500pcs 37.5×27.5×28 30 16mm2 12 300pcs 40.5×33×22.5 60A 25mm2 12 200pcs 39×31.5×27.5 80A 30mm2 12 120pcs 36×21×34 100A 35mm2 12 100pcs 38.5×23×32.5 150A 40mm2 12 60pcs 43.5×26×20

Color:standard in natural black,white,and colors available upon request(OEM) Insulating material:PE(polythene),PA
