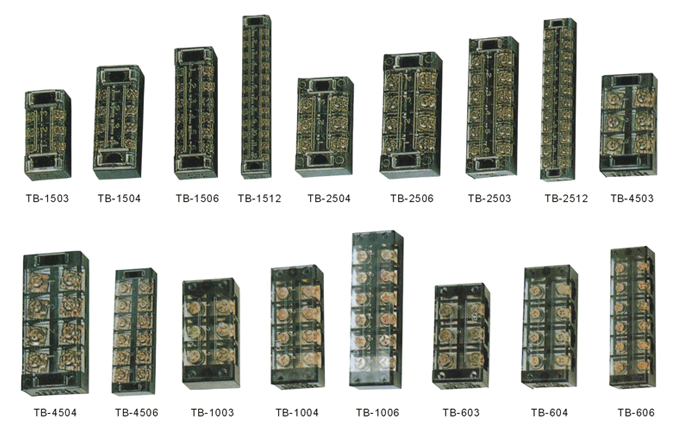

| TB Series terminal connector |
 |
| Type |
Rating |
Number Of Poles |
Dimensions(mm) |
| L |
L1 |
A |
B |
C |
D |
E |
| TB-1503 |
600V
15A |
3 |
46 |
36.5 |
7.5 |
9 |
M3 |
22 |
17 |
| TB-1504 |
4 |
55 |
45.5 |
7.5 |
9 |
M3 |
22 |
17 |
| TB-1506 |
6 |
73 |
63.5 |
7.5 |
9 |
M3 |
22 |
17 |
| TB-1512 |
12 |
127 |
118 |
7.5 |
9 |
M3 |
22 |
17 |
| TB-2503 |
600V
25A |
3 |
50 |
40 |
10.5 |
12 |
M4 |
30 |
20 |
| TB-2504 |
4 |
62.5 |
57 |
10.5 |
12 |
M4 |
30 |
20 |
| TB-2506 |
6 |
91 |
81.5 |
10.5 |
12 |
M4 |
30 |
20 |
| TB-2512 |
12 |
163 |
153 |
10.5 |
12 |
M4 |
30 |
20 |
| TB-3503 |
600V
35A |
3 |
50 |
40 |
10.5 |
12 |
M4 |
22 |
20 |
| TB-3504 |
4 |
62.5 |
57 |
10.5 |
12 |
M4 |
30 |
20 |
| TB-3506 |
6 |
91 |
81.5 |
10.5 |
12 |
M4 |
30 |
20 |
| TB-3512 |
12 |
163 |
153 |
10.5 |
12 |
M4 |
30 |
20 |
| TB-4503 |
600V
45A |
3 |
70 |
60.5 |
15 |
17 |
M5 |
38 |
23.5 |
| TB-4504 |
4 |
86 |
75.5 |
15 |
17 |
M5 |
38 |
23.5 |
| TB-4506 |
6 |
120.5 |
110 |
15 |
17 |
M5 |
38 |
23.5 |
| TB-603 |
600V
60A |
3 |
70.5 |
65.5 |
15.5 |
18 |
M6 |
38 |
31 |
| TB-604 |
4 |
93.5 |
82.5 |
15.5 |
18 |
M6 |
38 |
31 |
| TB-606 |
6 |
129 |
118 |
15.5 |
18 |
M6 |
38 |
31 |
| TB-1003 |
600V
100A |
3 |
86.5 |
75.5 |
22 |
20 |
M6 |
43.5 |
35 |
| TB-1004 |
4 |
108 |
96 |
22 |
20 |
M6 |
43.5 |
35 |
| TB-1006 |
6 |
153 |
140 |
22 |
20 |
M6 |
43.5 |
35 | | |
|
