| Product details↓ |

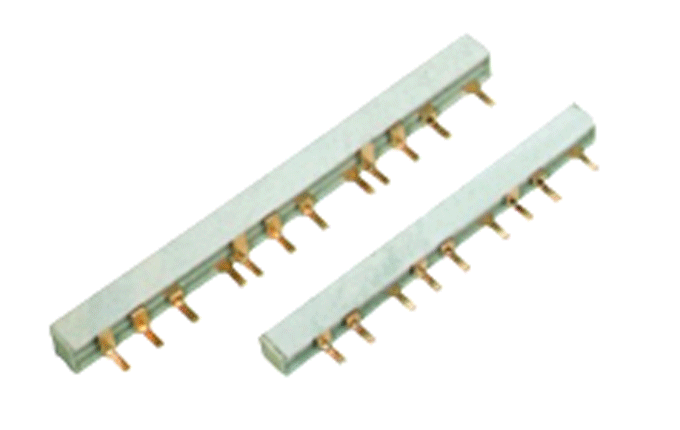

| Busbar connection |
 |
●The bus bars ease wiring of electrical item,enlarge connection area,eecrease temperature rise and thus increase the electrical reliability of electrical items.
●Material is of fire-resistant PVC and red copper
●Current rating is up to 63A
●Rated voltage is up to 415V
●Appicable ambient temperature-25℃~+50℃
●Standard length 1m,other length to be made upon request |
| Busbar connection |
Current ratings(A) |
Poles No. |
Cross section (mm) |
Length (mm) |
Category No. |
 |
63 |
56×1 |
20 |
100 |
BB101 |
| 63 |
56×1 |
20 |
100 |
BB102 |
 |
63 |
27×2 |
20 |
100 |
BB201 |
| 63 |
27×2 |
20 |
100 |
BB202 |
 |
63 |
18×3 |
20 |
100 |
BB301 |
| 63 |
18×3 |
20 |
100 |
BB302 |
 |
63 |
14×4 |
20 |
100 |
BB401 |
| 63 |
14×4 |
20 |
100 |
BB402 | | |
|
