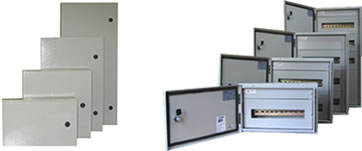

Distribution Board - Heavy Duty - Surface Mounting

Distribution Board - Heavy Duty - Flush Mounting

Specifications of Heavy Duty - Surface & Flush Mounting Distribution Boards

   ¬  Epoxy Polyester Powder coated to textured Light Grey (RAL 7032)
   ¬  Ingress Protetion 65 (IP 65) as per IEC 529
   ¬  Heavy Duty Distribution Boards Consists of Cabin, Gland plate/s with Neoprene gasket/s, Mounting Rails, DIN    ¬  rails, Front        Plates & Steel door
   ¬  DIN rail unit can be removed from thr cabin to faculitate faster wiring
   ¬  Mounting plate for MCCB can be adjustable in depth to accommadate different brands of MCCBs
   ¬  Front plate is supplied as one plate. Modular separate front plates are available on request
   ¬  Neutral & Earth links are supplied
   ¬  Collar frames of Flush Mounting Distribution Board are removable for easy transportation and stocking
   ¬  Terminal section is covered by a separate front plate
   ¬  Neoprene gasket on door to prevent dust & water (To maintain the IP rating) IP 65 protection
   ¬  Concealed HInge. door opens 120 degrees
   ¬  Provision to fix door left right hand side
   ¬  Earth stud on door & cabin for earthing
   ¬  Recessed back plate
    ¬  Recessed gland plate
    ¬  Back Embossed with a rib for extra strength
    ¬  Gland plate is fixed with Copper studs. No screws are penetrated outside, (To maintain the IP rating)
    ¬  Opennings are covered with plastic plugs (To maintain the IP rating)
    ¬  Distribution Boards are supplied with steel front door. Glass front door is available on request
    ¬  Door lock is IEC lock with common key. other lock options are available on request
