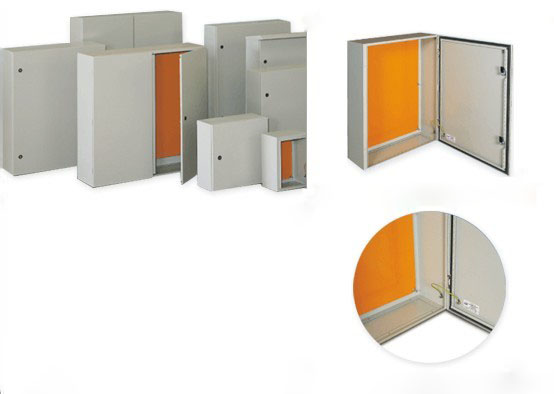

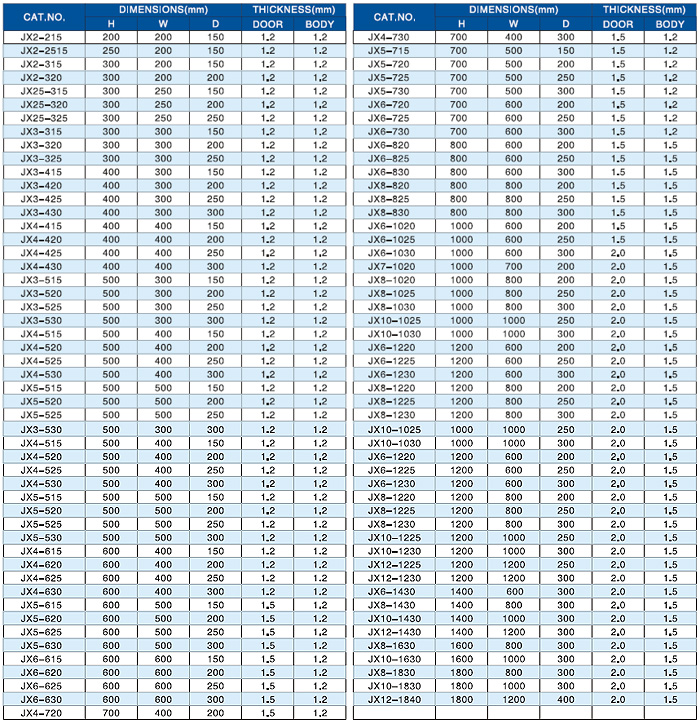

Wide range of standard sizes to cover panel builder's needs
Rigid housing formed from single sheet of electro-galvanised sheet steel, electro-statically powder coated to RAL 7032 textured finish
Wall fixing holes in the rear wall with protective plugs. Holes can be used for fixing wall mounting brackets
Flange opening for cable entry with gasketted gland plates. Possibility of cable entry from top or bottom.
Door with all round neoprene seals held by angled section
Vertical door stiffeners with punched holes for easy installation of rails, wiring harness, etc.
Doors can be hinged on right or left with 120o angle opening.
Quarter turn locks with 5mm shaft fitted as standard. Twin bitkey supplied with each enclosure
Standard removable mounting plate for installation of components
Grounding wire provided for earthing the door
Protection to IP65
Optional : Paint Shades, Canopy, Gland Plates, Locks, Non-standard Sizes, Material, etc.
