| Product Outline |
SGLD automatic change-over switch(ATSE)integrates switch and logic control,thus it is not necessary to provide external controller. This truly electromechanically integrated automatic change-over switch has the following functions such as voltage detection,frequency detection,communication interface,electrical and mechanical interlocking etc.,so,automatic control,electrical remote control and emerge- ncy manual control can be performed.
The operation is carried out through the logic control board,which gives various commands to control the motor and gear-box.The motor drives the accelerator which can take switch-spring power accumulating and instantaneous release,swiftly turns making and breaking the circuit or makes circuit switching.The visible operation status can help you to perform safe separation,increasing extremely the various electrical and mechanical performance.
Which the shell of switch SGLD is made of different materials:its control section is made of metal,but the switching section is made of glass-fibre unsaturated polyester resin,having stronger dielectric property and protective capability as well as safe operation performance.
This kind of switch is suitable for the automatic changeover of the main power source and the secondary power source of the power supply system of the automatic change-over and safe separation of the 2 sets of load-equipment.
This kind of switch has a beautiful,novel and simple structure,a small volume but complete functions,being the best choice among congeneric of products.
SGLD Series had been already passed the detection of EMC. |
| Type ＆ Meaning |
 |
Example for model selection
SGLD-100/4～380V In 50A
The automatic change-over switch,the initial heat electric current 100 amperes,rated AC voltage 380V,the nominal current 50 amperes,4poles (3poles+break neutrality pole)suitable for city electricity-city electricity system’s automatic switch and self-reset. |
| Conform Standard |
SGLD Series Automatic Change-Over Switch Complies With The Following Standards;
Interanational Standard
IEC60947-1(1998)《Low-voltage switchgear and controlgear,part one:General Rules》
IEC60947-3(1999)《Low-voltage switchgear and controlgear,switches,disconnetors,switch-disconnectors and fuse-conbination nuits》
IEC60947-6(1999)《Low-voltage switch equipment and control equipment multi-function-swtch automatic change-over switch electrical device》
National Standard：
GB/T14048.1-2002《Low-voltage switchgear and controlgear,part one:General Rules》
GB14048.3-2002《Low-voltage switchgear and controlgear,switches,disconneetors,switch-disconnectors and fuse-conbination units》
GB14048.11-2002《Low-voltage switch equipment and control equipment multi-function-switch automatic changeover switch electrical device》 |
| Main Technical Parameters |
| 1、SGLD-100～1600A series automatic change-over switch electrical properties and mechanical properies |
|
Conventional thermal current lth A |
100A |
160A |
| Rated current ln(A) |
20A |
40A |
63A |
80A |
100A |
125A |
160A |
| Rated impulse withstand voltage Ui(A) |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
| Dielectric strength(V) |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
| Rated surge-resistant voltage Uimp kV(installed category IV) |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
| Rated Working current le(A) |
380A |
AC-31 |
20 |
40 |
63 |
80 |
100 |
125 |
160 |
| AC-33 |
20 |
32 |
40 |
63 |
80 |
125 |
160 |
| AC-35 |
20 |
40 |
63 |
80 |
100 |
125 |
160 |
| 220A |
DC-31 |
20 |
40 |
63 |
80 |
100 |
125 |
160 |
| DC-33 |
20 |
32 |
40 |
63 |
80 |
100 |
125 |
| DC-35 |
20 |
40 |
63 |
80 |
100 |
125 |
160 |
| Motor power P(380V)kW |
10 |
20 |
25 |
30 |
32 |
60 |
80 |
| Rated short-time withstand current(kA Rms)0.1S/1S |
9/5 |
9/5 |
9/5 |
9/5 |
9/5 |
20/10 |
20/10 |
| Rated breaking capbility(A Rms)AC33 380V |
160 |
320 |
500 |
640 |
800 |
1000 |
1000 |
| Rated making capability(A Rms)AC33 380V |
200 |
400 |
630 |
800 |
1000 |
1250 |
1250 |
| Rated short-current making capability lcm(kA peak value) |
8 |
8 |
10 |
10 |
10 |
12 |
12 |
| Mechanical durability(number of cyclic operation) |
8000 |
8000 |
8000 |
8000 |
8000 |
5000 |
5000 |
| Electric durability |
COSφ=0.65 AC33 |
1500 |
1500 |
1500 |
1500 |
1500 |
1000 |
1000 |
| Change-oner time |
I-0-II 或 II-0-I (s)
I-0 或 II-0 (s) |
0.5
0.3 |
0.5
0.3 |
0.5
0.3 |
0.5
0.3 |
0.5
0.3 |
1.0
0.6 |
1.0
0.6 |
| Power wer consumption of electrical control |
24V(DC)(w) |
50 |
50 |
50 |
50 |
50 |
75 |
75 |
| 220V(AC)(w) |
50 |
50 |
50 |
50 |
50 |
75 |
75 |
| Moment of operation(Nm) |
15 |
15 |
15 |
15 |
15 |
22 |
22 |
| Weight(kg) |
3poles |
|
|
|
|
|
8.2 |
8.2 |
| 4poles |
4.2 |
4.3 |
4.4 |
4.5 |
4.5 |
8.7 |
8.7 | |
|
Conventional thermal current lth A |
250A |
630A |
1600A |
3200A |
| Rated current ln(A) |
200A |
250A |
400A |
630A |
800A |
1000A |
1250A |
1600A |
2000A |
2000A |
3200A |
| Rated impulse withstand voltage Ui(A) |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
| Dielectric strength(V) |
5000 |
5000 |
8000 |
8000 |
10000 |
10000 |
10000 |
10000 |
10000 |
10000 |
10000 |
| Rated surge-resistant voltage Uimp kV(installed category IV) |
8 |
8 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
| Rated Working current le(A) |
380A |
AC-31 |
200 |
250 |
400 |
630 |
800 |
1000 |
1250 |
1600 |
2000 |
2500 |
3200 |
| AC-33 |
200 |
250 |
340 |
536 |
800 |
1000 |
1000 |
1600 |
1250 |
1250 |
1250 |
| AC-35 |
200 |
250 |
400 |
630 |
800 |
1000 |
1250 |
1600 |
2000 |
2000 |
2500 |
| 220A |
DC-31 |
200 |
250 |
400 |
630 |
800 |
1000 |
1250 |
1600 |
|
|
|
| DC-33 |
160 |
200 |
315 |
500 |
|
|
|
|
|
|
|
| DC-35 |
200 |
250 |
400 |
500 |
800 |
1000 |
1250 |
1600 |
|
|
|
| Motor power P(380V)kW |
100 |
132 |
220 |
280 |
|
|
|
|
|
|
|
| Rated short-time withstand current(kA Rms)0.1S/1S |
25/12 |
25/12 |
40/20 |
50/25 |
90/50 |
90/50 |
90/50 |
90/50 |
90/50 |
90/50 |
95/50 |
| Rated breaking capbility(A Rms)AC33 380V |
1600 |
1600 |
3200 |
3200 |
6400 |
8000 |
10000 |
12800 |
16000 |
20000 |
25600 |
| Rated making capability(A Rms)AC33 380V |
2000 |
2000 |
4000 |
4000 |
8000 |
10000 |
12500 |
16000 |
20000 |
25000 |
32000 |
| Rated short-current making capability lcm(kA peak value) |
17 |
17 |
30 |
30 |
|
|
|
|
|
|
|
| Mechanical durability(number of cyclic operation) |
5000 |
5000 |
4000 |
4000 |
2500 |
2500 |
2500 |
2500 |
1500 |
1500 |
1500 |
| Electric durability |
COSφ=0.65 AC33 |
1000 |
1000 |
500 |
500 |
500 |
500 |
500 |
500 |
300 |
300 |
300 |
| Change-oner time |
I-0-II 或 II-0-I (s)
I-0 或 II-0 (s) |
1.1
0.7 |
1.1
0.7 |
1.2
0.8 |
1.2
0.8 |
1.2
0.8 |
1.2
0.8 |
1.2
0.8 |
1.2
0.8 |
2.4
1.6 |
2.4
1.6 |
2.4
1.6 |
| Power wer consumption of electrical control |
24V(DC)(w) |
75 |
75 |
90 |
90 |
90 |
90 |
90 |
90 |
120 |
120 |
120 |
| 220V(AC)(w) |
75 |
75 |
90 |
90 |
90 |
90 |
90 |
90 |
120 |
120 |
120 |
| Moment of operation(Nm) |
30 |
30 |
45 |
45 |
55 |
55 |
55 |
60 |
95 |
95 |
95 |
| Weight(kg) |
3poles |
10.4 |
10.4 |
17.8 |
19 |
28 |
31 |
31 |
34 |
|
|
|
| 4poles |
11.3 |
11.3 |
20.2 |
22 |
32 |
36 |
40 |
49 |
98 |
98 |
135 | |
| Performance and characteristic |
It adopted double complex contact,horizontal and vertical type framework,Micro motor pre-saving and Micro electronic control technical,basically,it have come to"Zero"arc(No Arc Chute);
It adopt reliable machine interlock and electric interlock,the elecutive union parts adopt independency overload disconnect switch,it makes more reliable and safety;
Adopt"Zero"technique,it can force to set"zero"under emergenncy situation(break off two way power supply at the same time),meet the requirement of fire protection linkage;
Operate overload disconnect switch change over adopt singleness electromotor drive,switch over smooth and reliable,no noise,little wallop;
Operate machine drive motor use only under the executive overload disconnect switch change over instantaneouse current across,outstanding energy saving;
Perform overload disconnect switch with mechanism interlock device,it ensure the common use ,standby power working reliable and not interference;
Distinct On and Off position indicator/padlock functionetc.,safe reallze the disconnect between electric power and overload;
High security,high automatization,high reliable,use life more than 5000 times;
Machine ＆ Electricity perfect desigh,On-Off changeover nicety、agility/smooth,adopt interm、national advanced logical control technique,high anti-interference and nointerference outside;
It include main power close,standby power separate;main power separate;standby power close;main、standby power all break off and steady working(I-0-II).
Easy installation,control loop adopt terminal connection and insert.
Four kind of operation function;emergency manual operation、electromotion remote control operation、automatic control state emergency off opeartion 、automatic control operation. |
| Product Usage |
SGLD Series automatic change over switch mainly suitable for distribution or electromotor network,which under AC 50Hz,rated voltage 380V,rated voltage DC220V,rated current 16～1600A,main power andstandby power or mutual standby power change over system or city power and generator group overload switch-over system or city power and generator group overload switch-over.At the same time,it can operated under un-frequency On and Off cicruit act as disconnector.
Such products are widely used at the field of lmportant Power supply site,which transport,distribution power supply system and automatization.system.for Fire Proection、Band、Building etc.,which doesn’t allowed power off |
| Cortrol Characteristic |
The switch has 3 poles or 4 poles (3 poles+on or off neutral pole).
27 current grades can be divided into 16A、20A、25A、32A、40A、50A、63A、80A、100A、125A、160A、200A、225A、250A、315A、350A、400A、450A、500A、630A、800A、1000A、1250A、1600A、2000A、2500A、3200A.
Basic Type:Mainstandby power,self-cast,self reset.
Intelligent type:Four kind of working patterns for selection
1.Self-switch and self-reset:suitable in the city electricity-city electricity.,two circuit power,three phase of lack,over and low voltage examinaiton.
2.Self-switch,not self-reset:suitable in the city electricity-city electricity.,two circuit power,three phase of lack,over and low voltage examinaiton.
3.City electrical Generator:suitable in the city electricity-kerosene engine,self-switch and self-reset two circuit power three phase lack,over voltage examination.
4.Instrument display:only for show.
Basic type switch control characteristic
1.Suitable in the two circuit of main and prepare electrical power,self-switch and self-reset;
2.External connection carries on the function expansion.
Suitable in the two circuit of main and prepare electrical power
Intelligent type switch control characteristic;
1、Self switch and self reset
when the main when the main power supply circuit loop breaks down(lack phase,over voltage)the switch(to be possible set 0～999S)after transformation time delay T1 to automatically changeover into the spare power supply circuit loop.
When the main electrical power supply loop recover normal,switch return time delay T2(may set 0～999S)automatically back to the main power loopl
2.Self switch no self reset
Suitable in the two circuit city electricity mutually backup system
When I route power circuit failure(lack phase,over voltage);The switch(may set 0～999S)after transformation time delay T1 automatically changeover into II Road power circuit;When the I route power circit restores and become normal,the switch does not returns I Road,only then in route II power failure,the switch returns time delay T2(may set 0～999S)to automatically returns I Road power circuit.
3.City electrical generator
Is suitable supplies power primarily in the city electricity,the power set for the spare power supply system.When the city electricity breaks don,the switch controller first sends cut the start kerosene engine signal,the switch(i.e.Warm machine time adjustable 0～, 999S)transfer automatically after transformation time delay T1 into the kerosene engine power supply retrun route.I When the city electricity restores is normal,the switch after returns by the delay T2(may set0～999S)automatically changeover returns to the city electricity power supply,after then cold machine time delay T3(may set0～999S)again,the controller sends out the shutting down kerosene engine signal.The city electricity,the kerosene engine have three-phase lack,three-phase low and over voltage examination function etc. |
The above-mentioned 4 models having:
①.The function of automation,electric control and hand control.
②.Delay-time 0.5s,detection signal,to prevent error action.
③.Remote control "0" position.
④.The key switch to select control modes.
⑤.The switch can all be proviede with RS-485 communication.This can be provided according to the requirements of the user. |
| Operation Environment |
SGLD automatic changing-over is olation switch can work reliably under the following conditions:
◎Height above sea level does not exceed 2,000m;
◎Ambient temperature is not higher than 40℃ and not lower than -5℃;
◎Relative humidity is not larger than 95％;
◎No explosive dangerous medium environment;
No rain and snow attack environment;
Note:if the load isolation switch is expected to be used in the condition that the ambient temperature is higher than +40℃ or is lower than -5℃～-45℃,customers should inform to the manufactory. |
| City power-oil machine automatic cut over schematic drawing |
 |

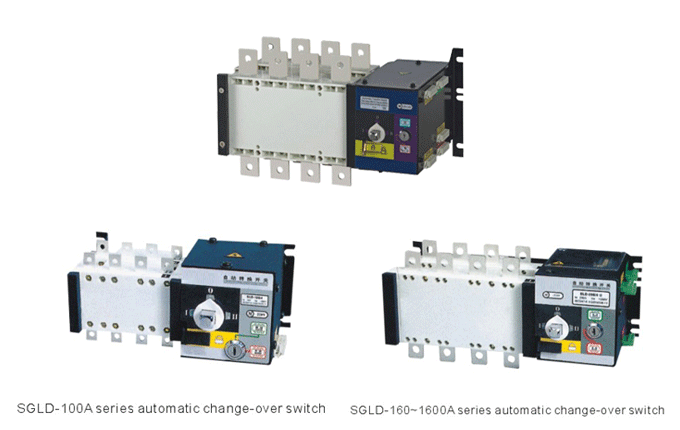

| SGLD-100A automatic change-over switch |
| 1.External Dimension and Installation Dimension(20～100A) |
 |
| 2.typical connection type |
 |
●HL1、HL2 respectively be main power,alternative power indicator
●HD1、HD2 respectively be main power,alternative power switch indicator
●FU1、FU2 are 2A fuse
●302～305 are SGLD switch terminal. |

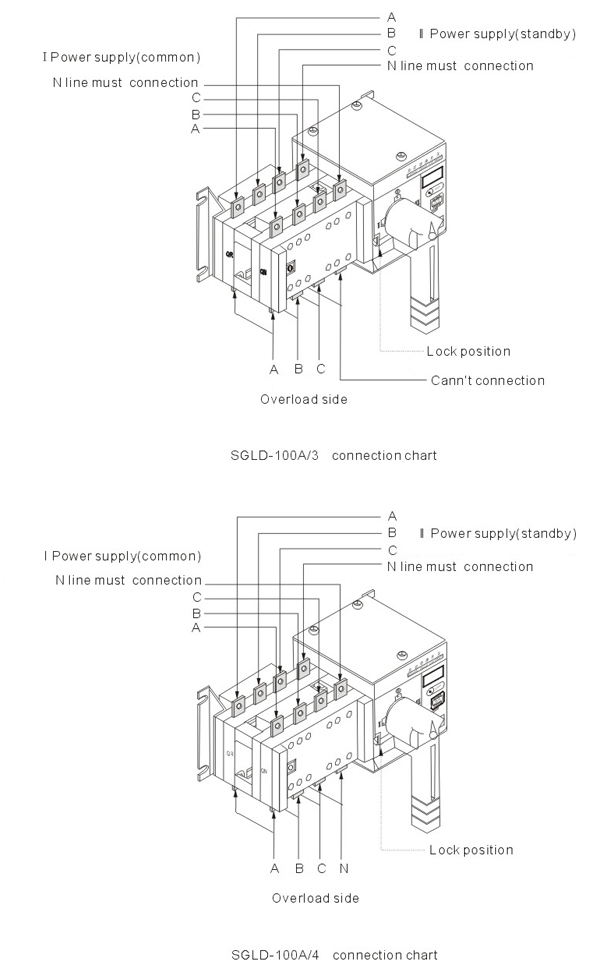

| 3.connection chart |
 |
| SGLD-160～630A automatic change-over switch external dimension and installation dimension |
 |
| Note:The connection bridge opening AND output post hole quantity is consistent. |
| Specification |
External Dimension and Installtion Dimension |
| In |
A |
A1 |
B |
B1 |
C |
E |
G |
J |
K |
L |
N |
P |
R |
S |
T |
U |
W |
φX |
Y |
Y1 |
| 125A/3 |
376 |
283.5 |
135 |
134 |
261 |
208 |
166 |
262.5 |
78/108 |
7 |
87 |
36 |
20 |
25 |
3.5 |
134 |
155 |
9 |
56 |
141 |
| 125A/4 |
406 |
316 |
135 |
134 |
261 |
208 |
166 |
295 |
78/108 |
7 |
87 |
36 |
20 |
25 |
3.5 |
134 |
155 |
9 |
56 |
141 |
| 160A/3 |
376 |
283.5 |
135 |
134 |
261 |
208 |
166 |
262.5 |
78/108 |
7 |
87 |
36 |
20 |
25 |
3.5 |
134 |
155 |
9 |
56 |
141 |
| 160A/4 |
406 |
316 |
135 |
134 |
261 |
208 |
166 |
295 |
78/108 |
7 |
87 |
36 |
20 |
25 |
3.5 |
134 |
155 |
9 |
56 |
141 |
| 200A/3 |
416 |
313.5 |
170 |
134 |
261 |
208 |
166 |
302.5 |
78/108 |
7 |
87 |
50 |
25 |
30 |
3.5 |
134 |
164 |
11 |
60 |
145 |
| 200A/4 |
466 |
373.5 |
170 |
134 |
261 |
208 |
166 |
353 |
78/108 |
7 |
87 |
50 |
25 |
30 |
3.5 |
134 |
164 |
11 |
60 |
145 |
| 250A/3 |
416 |
313.5 |
170 |
134 |
261 |
208 |
166 |
302.5 |
78/108 |
7 |
87 |
50 |
25 |
30 |
3.5 |
134 |
164 |
11 |
60 |
145 |
| 250A/4 |
466 |
373.5 |
170 |
134 |
261 |
208 |
166 |
353 | <,;,,TD class=wz bgColor=#ffffff align=middle>78/108
7 |
87 |
50 |
25 |
30 |
3.5 |
137 |
164 |
11 |
60 |
145 |
| 400A/3 |
455 |
378.5 |
240 |
208 |
333 |
270 |
166 |
358.5 |
176 |
11 |
103.5 |
65 |
32 |
40 |
5 |
208 |
197 |
12 |
83 |
193 |
| 400A/4 |
515 |
438.5 |
240 |
208 |
333 |
270 |
166 |
418.5 |
176 |
11 |
103.5 |
65 |
32 |
40 |
5 |
208 |
197 |
12 |
83 |
193 |
| 630A/3 |
455 |
378.5 |
260 |
208 |
333 |
270 |
166 |
358.5 |
176 |
11 |
103.5 |
65 |
40 |
50 |
6 |
208 |
197 |
12 |
84 |
194 |
| 630A/4 |
515 |
438.5 |
260 |
208 |
333 |
270 |
166 |
418.5 |
176 |
11 |
103.5 |
65 |
40 |
50 |
6 |
208 |
197 |
12 |
84 |
194 | |
| SGLD-2000～3200A basic type automatic change-over switch |
| 1.SGLD-800～1600A External Dimension and Installation Dimension |
 |
| |
General dimension |
On-Off installation |
Terminal connection |
| Specification |
A |
A1 |
B |
B1 |
C |
E |
G |
H |
J |
K |
L |
N |
O |
P |
R |
S |
T |
U |
V |
W |
Y |
Y1 |
Z |
| Z800A |
1007 |
633 |
330 |
250 |
370 |
321 |
470 |
65 |
609 |
220 |
11 |
85 |
524 |
120 |
63 |
65 |
7 |
250 |
60.5 |
188.5 |
107 |
249 |
40 |
| 1000A |
1007 |
633 |
330 |
250 |
370 |
321 |
470 |
65 |
609 |
220 |
11 |
85 |
524 |
120 |
63 |
65 |
7 |
250 |
60.5 |
188.5 |
107 |
249 |
40 |
| 1250A |
1007 |
633 |
330 |
250 |
370 |
321 |
470 |
65 |
609 |
220 |
11 |
85 |
524 |
120 |
63 |
65 |
7 |
250 |
60.5 |
188.5 |
107 |
249 |
40 |
| 1600A |
1007 |
633 |
330 |
250 |
370 |
321 |
470 |
65 |
609 |
220 |
11 |
85 |
524 |
120 |
63 |
65 |
15 |
250 |
60.5 |
188.5 |
111 |
253 |
40 | |
| 2.SGLD-2000～3200A External Dimension and Installation Dimension |
 |
| General dimension |
On-Off installation |
Terminal connection |
| Specification |
A |
A1 |
B |
C |
E |
G |
H |
J |
K |
L |
N |
O |
P |
R |
S |
T |
U |
V |
Y |
Y1 |
Y3 |
| 2000A |
1007 |
633 |
455 |
562 |
495 |
470 |
53 |
467 |
220 |
11 |
84.5 |
524 |
120 |
80 |
80 |
15 |
250 |
33 |
147 |
84 |
147 |
| 2500A |
1007 |
633 |
455 |
562 |
495 |
470 |
28 |
467 |
220 |
11 |
84.5 |
524 |
120 |
120 |
100 |
15 |
250 |
13 |
152 |
79 |
152 |
| 3200A |
1007 |
633 |
455 |
562 |
495 |
470 |
28 |
467 |
220 |
11 |
84.5 |
524 |
120 |
120 |
100 |
15 |
250 |
13 |
152 |
79 |
152 | |
| SGLD-100～3200A automatic change-over switch control and operation |
The logic control board will send out different to control the operation of the gear-motor directly assembled in the switch to ensure the position of the switch.
The gear motor is made of neoprene to insulate wetness and heat has a safety device.It will trip off when th temperature is over 110℃ and when it is under over-current state,when the trouble is disapperared,the device will automatically resumes its work,the reversible reduction gear adopts straight tooth gear. |
 |
| Operation |
 |
The key carries on automatic control condition SGLD throws automatically cuts.
By connect and inserts the post 202,204 for long distance force reset "0" | |
| |
 |
Emergency manual operation:to use emergency operation handle,to turn 90°at each position. | |
| |
 |
When the key is at manual operation position,to use connection termials 202～205 to perform remote electric control. | |
| |
 |
To use 1～3 locks to lock in:To keep position status,To prevent the emergency handle from being held on. | |
| Terminal diagram of SGLD-160～3200A |
| 1、Basic type terminal diagram |
 |
| 2.The intelligence NL integral type termianl connect chart |
 |
| The intelligence NL integral type two times terminal connect method |
| 一、 Completely automatic wiring way |
 |
| No necessary for outer second wiring,just turn the key on the automatic condition,connect switch indicator. |
 |
HD1:I circuit instruction
HD2:II circuit instruction
N1:I route power neutral wire(only for 3pole switch)
N2:II route power neutral wire(only for 3pole switch) | |
| 二、The completely automatic+compulsion sets at "0" (two-circuit power separation)wiring way |
| 1、 with source input set "0" wiring way. |
 |
Input DC24V switch double auto double separate
Clear DC24V switch back to automatic state |
| 2、no cource terminal set "0" way. |
 |
close switch K,switch automatically double separate.
break switch K,switch back to automatic state. |
| 三、 Long distance control wiring way. |
 |
| Needs to put the key on the manual position,then it can be remote control |
| Basic type two times wiring way. |
| 1、Completely automatic wiring way |
 |
| 2、The completely automatic+compulsion sets at "0" (two-circuit power separation)wiring way |
 |
| 3、Long distance control wiring way |
 |
| 4、Completely Automatic+MKanual(remote control)wiring way |
 |
| Cotoff function |
1、Power supply changeover:
Main power supply changeover to emergenay power.
2、Changeover,reverse:
Changeover between two load equipment.(Emergency standby motor)Reversion by two phases changeover.
3.Cutoff+the grounding:
One operation of grounding and short circuit realizes the isolation(*)(Ue＞AC)
General opening functions confirm with the standards of IEC947和GB/T4048. |
 | |
|
Published: 2010/6/24 13:47:34 Views: 4255
