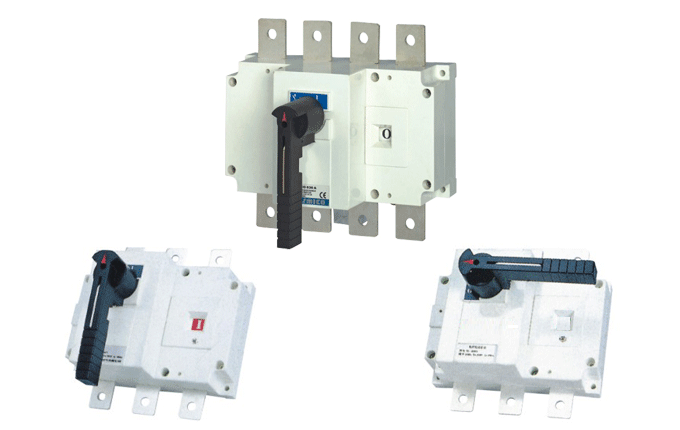

SGL series load isolation switch(hereinafter called switch for short)is manufactured by our company with the up-to-date technique imported from europe.This product meets the international technical level in the late 1990s,being the most ideal renewal of domestic congeneric products.
This kind of load isolation switch is widely used in the distribution system and automatic system of architecture,electrical power,petrochemical,and other industries.
This kind of load isolation switch possesses flexible structure of modularized design,possesses flexible and veraatile compositionality,it adopts the shell made by unsaturated polyester resin reinforced by glassfibre.It has very high dielectric performance,protective capability,and reliable operation.
The operating mechanism is an elastic-accumulating accelerating mechanism for instant release,which makes instant on and off of the double breakpoint contact.It has no relationship with the speed of operating handle and increases greatly various electric properties and mechanicl properties.
Many forms of structres and operation in which the on and off state of contact is observed through windows.There are operations inside and outside the board.There are frontal and lateral operations.There are connections behind the board.
This kind of switch has good-looking outline and various functions,being very novel,simple and small dimensioned,and the best choice among the congeneric products. |
| Type ＆ meaning |
 |
| One NO One NC |
F11 |
F1NO+F1NC |
| Two NO Two NC |
F22 |
F2NO+F2NC | |
|
Example of model selection
SGLZ2-160A/4JF11～380V In 125A
Change over load Isolation switch,inlet,AC rate voltage 380V,anventional thermal current 160A,rate current 125A,4 poles,operation outside the board,auxiliary contact No+Nc. | |
 |
| Characteristice of products |
1.The elastic-accumulating accerlerating mechanism For instand release realizes the rapid making and breaking(13.8m/s),having no relationship with the speed of the operating handle,and increasing greatly the capability of extinguishing electric arc.
2.The shell made of unsaturated polyester resin reinforced by glassfibre possesses excellent performance of flame resistant,dielectric performance,safe operformance.
3.Parallel double gap contant possesses self-cleaning functions.
4.All the contact materials are copper alloy plated with silver,and possess two separation contact furfaces,
5.Large clearance of insulation.
6.Be on "0" ,the products can lock the handle with three locks at the same time and thus can avoid error operation.
|
| Product usage |
| SGL series load isolation switch mainly suitable for AC 50Hz,rated voltage to 660v,DC rated voltage up to 440v,rated current up to 3,150A,The switch used in the infrequent making and breaking circuit. |
| SGL-63A～3150A electrical properties and mechanical properties |
| Conventional thermal current lth A |
63A |
100A |
160A |
250A |
| Rated current In (A) |
40 |
63 |
80 |
100 |
120 |
160 |
200 |
200 |
| Rated impulse withstand voltage Ui(V) |
750 |
750 |
750 |
750 |
750 |
750 |
750 |
750 |
| Dielectric strength(V) |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
| Rated surge-resistant voltage Uimp kV(installed category IV) |
6 |
6 |
6 |
6 |
8 |
8 |
8 |
8 |
| Rated Working current(A) |
380V |
AC-21 |
40 |
63 |
80 |
80 |
125 |
160 |
200 |
200 |
| AC-22 |
40 |
63 |
80 |
80 |
125 |
160 |
200 |
200 |
| AC-23 |
40 |
50 |
80 |
80 |
125 |
160 |
200 |
200 |
| 660V |
AC-21 |
40 |
50 |
80 |
80 |
125 |
160 |
200 |
200 |
| AC-22 |
32 |
32 |
50 |
50 |
125 |
80 |
160 |
160 |
| AC-23 |
25 |
25 |
40 |
40 |
80 |
160 |
100 |
125 |
| 220V |
AC-21 |
32 |
63 |
80 |
1000 |
125 |
160 |
200 |
250 |
| AC-22 |
40 |
63 |
80 |
80 |
125 |
125 |
200 |
250 |
| AC-23 |
40 |
63 |
63 |
63 |
125 |
125 |
160 |
200 |
| 440V |
AC-21 |
|
|
|
|
100 |
125 |
160 |
200 |
| AC-22 |
|
|
|
|
100 |
125 |
160 |
200 |
| AC-23 |
|
|
|
|
100 |
125 |
160 |
200 |
| Motor power P(380V)kW |
380V |
18.5 |
25 |
40 |
40 |
63 |
8 |
100 |
132 |
| 660V |
22 |
22 |
33 |
33 |
75 |
75 |
90 |
110 |
| Rated short-time withstand current(kA Rms)0.1S/1.0S |
|
|
|
|
20/10 |
20/10 |
30/12 |
30/12 |
| Rated breaking capbility(A Rms)AC33 380V |
320 |
504 |
630 |
800 |
1000 |
1000 |
1600 |
1600 |
| Rated making capability(A Rms)AC33 380V |
400 |
630 |
800 |
1000 |
1250 |
1250 |
2000 |
2000 |
| Rated short-current making capability lcm(kA peak value) |
7.5 |
7.5 |
10 |
10 |
12 |
12 |
17 |
17 |
| Mechanical durability(number of cyclic iperation) |
10000 |
10000 |
10000 |
10000 |
10000 |
10000 |
10000 |
10000 |
Electric durability(number of cyclic iperation)
Rated voltage Ue=660V,Rated current le |
COSφ=0.95 AC21 |
1700 |
1700 |
1700 |
1700 |
1500 |
1500 |
1500 |
1500 |
| COSφ=0.65 AC22 |
100 |
100 |
100 |
100 |
1000 |
1000 |
1000 |
1000 |
| COSφ=0.35 AC23 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
| Moment of operation(Nm) |
1.2 |
1.2 |
1.2 |
1.2 |
6.5 |
6.5 |
10 |
10 |
| Weight(kg) |
3poles |
0.37 |
0.37 |
0.37 |
0.37 |
1.3 |
1.3 |
2.2 |
2.2 |
| 4poles |
0.41 |
0.41 |
0.41 |
0.41 |
1.5 |
1.5 |
2.6 |
2.6 | |
| Conventional thermal current lth A |
630A |
1600A |
3150A |
| Rated current In (A) |
315 |
400 |
500 |
630 |
1000 |
1250 |
1600 |
2000 |
2500 |
3150 |
| Rated impulse withstand voltage Ui(V) |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
| Dielectric strength(V) |
8000 |
8000 |
8000 |
8000 |
10000 |
10000 |
10000 |
10000 |
10000 |
10000 |
| Rated surge-resistant voltage Uimp kV(installed category IV) |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
| Rated Working current(A) |
380V |
AC-21 |
315 |
400 |
500 |
630 |
1000 |
1250 |
1600 |
2000 |
2500 |
3150 |
| AC-22 |
315 |
400 |
500 |
630 |
1000 |
1250 |
1600 |
2000 |
2000 |
3150 |
| AC-23 |
315 |
340 |
425 |
536 |
|
|
|
|
|
|
| 660V |
AC-21 |
315 |
400 |
400 |
500 |
1000 |
1000 |
1600 |
2000 |
2500 |
2500 |
| AC-22 |
315 |
315 |
315 |
315 |
800 |
800 |
800 |
1000 |
1000 |
1000 |
| AC-23 |
125 |
125 |
125 |
125 |
|
|
|
|
|
|
| 220V |
AC-21 |
315 |
400 |
500 |
630 |
1000 |
1250 |
1600 |
2000 |
2500 |
2500 |
| AC-22 |
315 |
400 |
400 |
500 |
1000 |
1250 |
1250 |
1600 |
1600 |
1600 |
| AC-23 |
|
|
|
|
|
|
|
|
|
|
| 440V |
AC-21 |
315 |
400 |
400 |
500 |
1000 |
1250 |
1250 |
2000 |
2000 |
2000 |
| AC-22 |
315 |
400 |
400 |
500 |
1000 |
1250 |
1250 |
1250 |
1250 |
1250 |
| AC-23 |
315 |
400 |
400 |
500 |
1000 |
1000 |
1000 |
|
|
|
| Motor power P(380V)kW |
380V |
160 |
220 |
280 |
315 |
560 |
560 |
560 |
710 |
710 |
710 |
| 660V |
185 |
185 |
185 |
185 |
475 |
475 |
475 |
750 |
750 |
750 |
| Rated short-time withstand current(kA Rms)0.1S/1.0S |
45/20 |
45/20 |
50/25 |
50/25 |
90/50 |
90/50 |
90/50 |
90/50 |
90/50 |
90/50 |
| Rated breaking capbility(A Rms)AC33 380V |
2500 |
3200 |
3200 |
3200 |
|
|
|
|
|
|
| Rated making capability(A Rms)AC33 380V |
3150 |
4000 |
4000 |
4000 |
|
|
|
|
|
|
| Rated short-current making capability lcm(kA peak value) |
30 |
30 |
40 |
40 |
|
|
|
|
|
|
| Mechanical durability(number of cyclic iperation) |
5500 |
5500 |
5500 |
5500 |
4000 |
400 |
3000 |
2500 |
2500 |
2500 |
Electric durability(number of cyclic iperation)
Rated voltage Ue=660V,Rated current le |
COSφ=0.95 AC21 |
750 |
750 |
750 |
750 |
600 |
|
450 |
|
|
|
| COSφ=0.65 AC22 |
500 |
500 |
500 |
500 |
400 |
|
300 |
|
|
|
| COSφ=0.35 AC23 |
250 |
250 |
250 |
250 |
200 |
|
150 |
|
|
|
| Moment of operation(Nm) |
14.5 |
14.5 |
14.5 |
14.5 |
37 |
|
60 |
60 |
60 |
60 |
| Weight(kg) |
3poles |
4.3 |
4.3 |
4.7 |
4.7 |
10.5 |
|
16 |
25.5 |
25.5 |
31 |
| 4poles |
5.4 |
5.4 |
6 |
6 |
13 |
|
20 |
37.5 |
37.5 |
51.5 | |
| conformed standard |
 |
| Operation Environment |
SGL series isolation switch can work reliably under the following conditions:
◎Height above sea level does not exceed 2,000m;
◎Ambient temperature is ntot higher than 40℃and not lower than -5℃;Relative humidity is not larger than 95％;
◎No explosive dangerous medium environment;
◎No rain and snow attack environment;
Note:if the load isolation switch is expected to be used in the condition that the ambient temperature is higher than +40℃ or is lower than -5℃-45℃,customers should inform to the manufactory. |
| SGL-63～3150A load isolation switch |
◎7 specifications of SGL load isolation switch from 63A to 3150A:Basic model of modularized design,3 poles,4 poles(3 poles+on and off neutral pole).It is suitable for the making and breaking operation of electric circuit or electric isolation.Switches over 1000A are only suitable for electric isolation.
◎Mark window is set in the front side to indicate the on and off state of the contact.
◎Rear observation window can be povided according to the demand to observe directly the on and off state of the contact.For switch,SGL-160A～1600A/H.
◎Two group of auxiliary contacts can be assembled.
◎The electric cable insulating cover can be assembled. |
Operation mode
Direct operation:
The handle is installed directly in the middle of the switch.
Operation outside the board:
The handle is installed outside the door off distributing board. |
 |
| SGL-63~100A load isolation switch |
63A-100A is suitable for the making and breaking of electrical isolation circuit or electric insulation.
63A-100A posseses three poles,and four poles(three poles+on off neutral pole.)
Two sets of auxiliary contacts can be assembled according to demand.
Side operation,operation outside,the board can be assemble according to demand. |
 |
| Attion:It’s SGL-40A~63A loading isolation switch which is no span |
 |
| SGL-63A～100A load isolation switch side operation load isolation switch |
 |
