Changeover load isolation switch
Product details↓

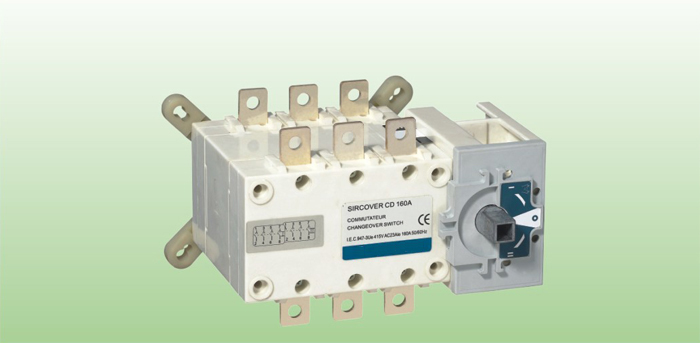

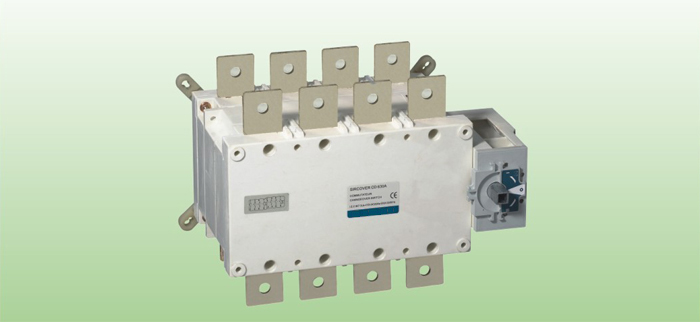

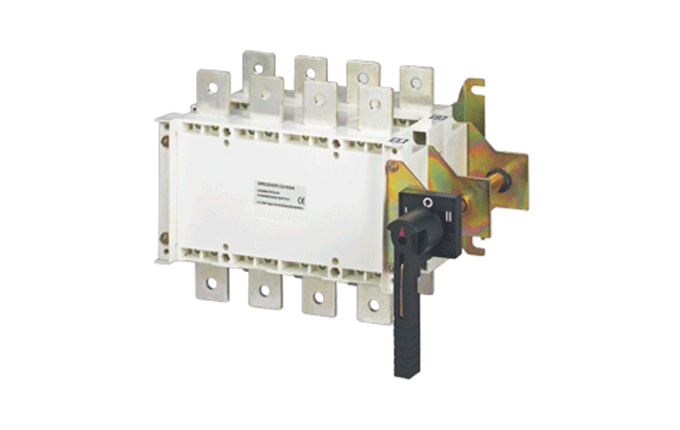

SGLZ-125A～1600A change over load isolation switch
　　SGLZ-125A～1600A.The load isolation switch is suitable for the change-over of two sets of low voltage electric circuit or the chang-over of 2 set of load devices or safety isolation.
　　Mode of operation:
　　Direct operation:handle is installed on the switch.
　　Operation outside the board:handle is installed outside the door of power distributing board.
　　Products with observation windows can be provided according to the demand to obsvrve directly the ON and OFF state of contact.
　　The products have three poles,four poles,and(three pole+ON and OFF neural pole).
　　Extended shate is used for ther operation outside the board.
　　Two sets of auxiliary contacts can be assembled according to the demand.
　　Mechanical performance and electric property correspond to the mechanical performance and elextric property of SGL-125A-1600A.
　　A bridge can provided to connect the inlet or outlet terminal of the switch.
　Note:The bridge connection is chosen,an explanation is needed to indicate ther indicate the inlet or outlet connected with it.


External Dimension and Installation Dimension of Change-over Load Isolation Switch
Specification Dimension of Bottom board
SGLZ1-125A～1600A I M Z W Q
125A 55 6.5 95 216 244
160A 55 6.5 95 216 244
200A 55 6.5 116 216 244
225A 55 6.5 116 216 244
315～400A 60 8.5 180 280 311
500～630A 60 8.5 180 280 311
1000～1600A 60 8.5 180 280 311
Specification External Dimension and Installation Dimension
SGLZ1-125A～1600A A B C D D1 E J J1 J2 K L P R S T U φX Y Y1 F
125A-160A/3 270 135 212 89 195 150 120 65 120 95 7 36 20 25 3.5 115 9 55 121 59
125A-160A/4 300 135 212 104 195 150 150 65 150 95 7 36 20 25 3.5 115 9 55 121 59
200A-250A/3 307 170 260 110 210 172 160 65 160 115 11 50 25 30 3.5 140 11 70 140 76
200A-250A/4 357 170 260 135 210 172 210 65 210 115 11 50 25 30 3.5 140 11 70 140 76
315A-400A/3 372 240 297 150 275 236 210 77 210 180 13 65 32 40 5 206 11 83 192 94
315A-400A/4 432 240 297 180 275 236 275 77 275 180 13 65 32 40 5 206 11 83 192 94
500A-630A/3 372 240 297 150 275 236 210 77 210 180 13 65 32 40 6 206 11 83 192 94
500A-630A/4 432 240 297 180 275 236 275 77 275 180 13 65 32 40 6 206 11 83 192 94


External Dimension and Installation Dimension of Change-over Load Isolation Switch
Specification External Dimension and Installtion Dimension
SGLZ1-1000A～4000A A B C D D1 E J J1 J2 K P R S T φX Y Y1 Y2 Y3
1000A/3 638 312 374 229 340 302 355 108.5 355 220 120 60 56 8 12.5 99 243.5
1000A/4 758 312 374 289 340 302 473 108.5 473 220 120 60 56 8 12.5 99 243.5
1250A/3 638 338 374 229 340 302 355

108.5

 355 220 120 80 69 8 12.5 99 243.5
1250A/4 758 338 374 289 340 302 473 108.5 473 220 120 80 69 8 12.5 99 243.5
1600A/3 638 338 374 229 340 302 355 108.5 355 220 120 80 69 10 12.5 99.5 244
1600A/4 758 338 374 289 340 302 473 108.5 473 220 120 80 69 10 12.5 99.5 244
2000A/3 576 455 603 603 700 495 347 88 347 220 120 80 127.5 10 12.5 78.5 225.5 309.5 456.5
2000A/4 696 455 603 603 700 495 467 88 467 220 120 80 127.5 10 12.5 78.5 225.5 309.5 456.5
2500A/3 576 455 603 603 700 495 347 88 347 220 120 80 127.5 10 12.5 78.5 227.5 309.5 456.5
2500A/4 696 455 603 603 700 495 467 88 467 220 120 80 127.5 10 12.5 78.5 227.5 309.5 456.5
3150A/3 576 505 603 603 700 495 347 88 347 220 120 120 152.5 12 12.5 78.5 227.5 309.5 458
3150/4 696 505 603 603 700 495 467 88 467 220 120 120 152.5 12 12.5 78.5 227.5 309.5 458
4000A/3 576 505 603 603 700 495 347 88 347 220 120 120 152.5   12.5 78.5
4000A/4 696 505 603 603 700 495 467 88 467 220 120 120 152.5   12.5 78.5


External Dimension and Installation Dimension ofSGLZ2-125A～1600A Side Operation Load Isolation Switch
Specificaton External Dimension and Installtion Dimension
SGLZ2-125A～1600A A B C E F J J1 K M N P Q R S T W Z
125A-160A/3 319 85 141 89 24 299 120 65 6.5 59 36 244 20 25 3.5 216 95
125A-163A/4 379 85 141 89 24 359 150 65 6.5 59 36 244 20 25 3.5 216 95
200A-250A/3 405 110 146 101 25 385 160 90 6.5 65 50 244 25 30 3.5 216 116
200A-250A/4 505 110 146 101 25 485 210 90 6.5 65 50 244 25 30 3.5 216 116
315A-400A/3 535 160 191 126 37 515 210 140 8.5 95 65 311 32 40 5 280 180
315A-400A/4 655 160 191 126 37 515 210 140 8.5 95 65 311 32 40 5 280 180
500A-630A/3 535 160 191 126 37.5 515 210 140 8.5 95 65 311 40 50 6 280 180
500-63A/4 655 160 191 126 37.5 515 210 140 8.5 95 65 311 40 50 6 280 180
1000A/3 863 200 272 163 48.5 811 355 220 8.5 105 120 311 60 56 8 280 180
1000A/4 1072 200 272 163 48.5 1051 473 220 8.5 105 120 311 60 56 8 280 180
1250A/3 863 200 272 163

48.5

 811 355 220 8.5 105 120 311 80 69 8 280 180
1250A/4 1072 200 272 163 48.5 1051 473 220 8.5 105 120 311 80 69 8 280 180
1600A/3 863 200 272 163 49.5 811 355 220

8.5

 105 120 311 80 69 10 280 180
1600A/4 1072 200 272 163 49.5 1051 473 220 8.5 105 120 311 80 69 10 280 180



Accessory
Handle lock accessory
Application
May in frontage position 0 or I,0,II Position locking
　　Use padlock(no supply)(Fig.1)this position have fix at the operate handle of cabinet accoring to the lock position Directoperate with padlock exclude(Fig.2). SGLZZ800to3150A lock tray(Fog.3)
　　May removable outer operate lock(exclude)(Fig 4)
　　The device may mount in cabinet SGLZZ800to3150A lock tray SGLZZ800to3150A undervoltage coil May do operation when wire coil power on.
Other special accessory.
Special protection screen(make special size or endure high temperature products)
Isolation screen between terminal
Junction accessory
Low level auxiliary contact


The characterisitc(conforms to the GB14048.3-2002/IEC60947-3 standard)
Conventional thermal current lth A(40℃) 125A 160A 200A 250A 400A 630A
Rated impulse withstand voltage Ui(V) 800 800 800 800 800 1000
Rated striling voltage Uimp(KV) 8 8 8 8 8 12
Rated operation currentel(A)
Rated voltage overload type A/B(1) A/B(1) A/B(1) A/B(1) A/B(1) A/B(1)
400VAC AC-21A/AC-21B 125/125 160/160 200/200 250/250 400/400

630/630

AC-22A/AC-22B 125/125 160/160 200/200 250/250 400/400 630/630
AC-23A/AC-23B 125/125 160/160 160/160 250/250 250/250 500/600
690VAC(2) AC-20A/AC-20B 125/125 160/160 200/200 250/250 400/400 630/630
AC-21A/AC-21B 125/125 160/160 160/160 200/250 200/250 500/500
AC-22A/AC-22B 125/125 125/125 125/125 125/160 125/160 315/315
AC-23A/AC-23B 63/80 63/80 63/80 100/125 100/125 160/200
220VDC DC-20A/DC-20B 125/125 125/125 200/200 250/250 400/400 630/630
DC-21A/DC-21B 125/125 125/125 160/160 250/250 250/250 630/630
DC-22A/DC-22B 125/125 1, 25/125 160/160 250/250 250/250 500/500
DC-23A/DC-23B 125/125 125/125 125/125 200/200 200/200 500/500
440VDC DC-20A/DC-20B 125/125 125/125 200/200 250/250 400/400 630/630
DC-21A/DC-21B 125/125 125/125 125/125 200/200 200/200 500/500
DC-22A/DC-22B 125/125 125/125 125/125 200/200 200/200 500/500
DC-23A/DC-23B 125(3)/80 125(3)/80 125(3)/125(3) 200(3)/200(3) 200(3)/200(3) 500(3)/500(3)
operation power No break down under 400VAC 63/63 80/80 80/80 132/132 132/132 280/280
No break down under 690VAC 55/75 55/75 55/75 90/110 90/110 150/185
Reactive power 400VAC (kvar) 55 75 90 115 185 290
Uses the fuse short-circuit current condition(the Karms required value) required short-circuit current value 100 100 50 50 8 70
Fuse Capacity 125 160 200 250 400 630
Short-circuit capability lcw(KArms)Allowed short time endure current 7 7 7 9 9 13
Short-cicuit dynamic intensity 20 20 20 30 30 45
Connection Minimal copper cable section 35 50 50 95 185 2×150
Minimal copper row width           2×30×5
Maximal copper cable section 50 95 95 150 240 2×300
Maximal copper row width 25 25 25 32 32 50
Minimal tighten wrest distance 9 9 9 20 20 20
Machanism Characteristic Life(operation cycle times) 10000 10000 10000 10000 10000 5000
3pole switch weight(kg) 1.5 1.6 1.8 2 3 3.5
4pole switch weight(kg) 1.6 1.7 1.9 2.1 3.5 4


Conventional thermal current lth A(40℃) 800A 1250A 1600A 1800A 2000A 2500A 3150A
Rated impulse withstand voltage Ui(V) 1000 1000 1000 1000 1000 1000 1000
Rated striling voltage Uimp(KV) 12 12 12 12 12 12 12
Rated operation currentel(A)
Rated voltage overload type A/B(1) A/B(1) A/B(1) A/B(1) A/B(1) A/B(1) A/B(1)
400VAC AC-21A/AC-21B 800/800 1250/1250 1600/1600 1800/1800 2000/2000 2500/2500 3150/3150
AC-22A/AC-22B 800/800 1250/1250 1600/1600 1800/1800 2000/2000 2000/2500 2500/2500
AC-23A/AC-23B 800/800 1250/1250 1250/1250 1250/1250 1250/1250 1250/1250 1250/1250
690VAC(2) AC-20A/AC-20B 800/800 1250/1250 1600/1600 1800/1800 2000/2000 2500/2500 3150/3150
AC-21A/AC-21B 800/800 800/800 1000/1000 1000/1000 2000/2000 2000/2500 2000/2500
AC-22A/AC-22B 800/800 200/500 1000/1000 1000/1000 1000/1000 1000/1000 1000/1000
AC-23A/AC-23B 200/250 1250/1250 500/500 500/500 800/800 800/800 800/800
220VDC DC-20A/DC-20B 800/800 1250/1250 1600/1600 1800/1800 2000/2000 2500/2500 3150/3150
DC-21A/DC-21B 800/800 1250/1250 1250/1250 1250/1250 2000/2000 2000/2500 2000/2500
DC-22A/DC-22B 800/800 1250/1250 1250/1250 1250/1250 1250/1600 1250/1600 1250/1600
DC-23A/DC-23B 800/800 1250/1250 1250/1250 1250/1250 1250(3)/1250(3) 1250(3)/1250(3) 1250(3)/1250(3)
440VDC DC-20A/DC-20B 800/800 1250(3)/1250(3) 1600/1600 1600/1600 2000/2000 2000/2000 3150/3150
DC-21A/DC-21B 800/800 1250(3)/1250(3) 1250(3)/1250(3) 1250(3)/1250(3) 1250/1250 1250/1250 1250/1250
DC-22A/DC-22B 800/800 1250(3)/1250(3) 1250(3)/1250(3) 1250(3)/1250(3) 1250(3)/1250(3) 1250(3)/1250(3) 1250(3)/1250(3)
DC-23A/DC-23B 800(3)/800(3) 1250(3)/1250(3) 1250(3)/1250(3) 1250(3)/1250(3) 1000(3)/1000(3) 1000(3)/1000(3) 1000(3)/1000(3)
operation power No break down under 400VAC 450/450 710/710 710/710 710/710 710/710 710/710 710/710
No break down under 690VAC 185/220 185/220 475/475 475/475 750/750 750/750 750/750
Reactive power 400VAC (kvar) 365 575 - - - - -
Uses the fuse short-circuit current condition(the Karms required value) required short-circuit current value 50 100 100 100 100 100 100
Fuse Capacity 800 1250 2×800 2×800 2×1000 2×1000
Short-circuit capability Allowed short time endure current 26 35 50 50, 50 50 55
Short-cicuit dynamic intensity 55 80 110 110 110 110 120
Connection Minimal copper cable section 2×185
Minimal copper row width 2×40×5 2×60×5 2×80×5 2×80×5 3×100×5 4×100×5 4×100×5
Maximal copper cable section 2×300 4×185 6×185 6×185
Maximal copper row width 63 63 100 100 125 125 125
Minimal tighten wrest distance     40 40 40 40 40
Machanism Characteristic Life(operation cycle times) 3000 3000 4000 4000 3000 3500 2500
3pole switch weight(kg) 17.5 22.5 34 34 70 72 98
4pole switch weight(kg) 21 27.5 42 42 85 88 110
(1)A type=frequency operation.B type=unfrequency operation
(2)With terminal shield screen or terminal isolate screen
(3)May use polarity 2pole under 4pole switch
(4)Power value for reference only,current value According to different manufacturer
(5)Suitable for rated voltage Ue=400VAC
(6)Long life:contact with us.


SGLZZ125-1800A
125-630A:L1=140mm
800-1800A:L1=210mm
1.Terminal guard shield
2.Direct handle operation
A.125-630A Cabinet outer handle operate.
B.800-1800A Cabinet outer handle operate.
Specification General Size Switch switch main body Fixation Connection
A A3p. A4p. C E AC H HA J3p. J4p. M3p. M4p. N T U V W X3p. Y X4p. Z Z1 AA BA CA
125 221 251 218 208-436 235 148 25 182 212 156 186 101 36 20 25 8.5 56 50 3.5 28 124 135 115 10
160 221 251 218 208-436 235 148 25 182 212 156 186 101 36 20 25 8.5 56 50 3.5 28 124 135 115 10
200 221 251 218 208-436 235 148 25 182 212 156 186 101 36 20 25 8.5 56 50 3.5 28 124 135 115 10
250 262 312 218 208-436 280 148 25 223 273 196 246 116 50 25 30 11 61 61 3.5 30 124 160 130 10
400 262 312 218 208-436 280 148 25 223 273 196 246 116 50 35 35 11 61 61 3.5 30 124 170 140 15
500 319 379 295 285-513 401 225 25 272 332 246 306 176 65 32 37 13 70.5 65.5 5 43 180 235 205 15
630 319 379 295 285-513 400 225 25 272 332 246 306 176 65 45 50 13

70.5

 65.5 5 43 180 260 220 20
800 386 466 375 425-577 459 298 29 306.5 386.5 336 336 250 80 50 60.5 15 48 48 7 66.5 253.5 321   26.5
1250 386 466 375 425-577 459 298 29 306.5 386.5 336 336 250 80 60 65 16×11 48 48 7 66.5 253.5 330   29.5
1600 478 598 375 425-577 461 298 29 306.5 518.5 467 467 250 120 90 43.5 12.5×5 54 54 8 66.5 253.5 288   15
1800 478 598 375 425-577 461 298 29 306.5 518.5 467 467 250 120 90 43.5 12.5×5 54 54 8 66.5 253.5 288   15
SGLZZ20000-3150A
1. Termianl screen shield
2. with Lengthens the connecting rod smallest length:638
Specification Whole size switch main body Fixation connection terminal
  A3p. A4p. F3p. F4p. M3p. M4p. Y Z Z1 Z2 Z3 AA
2000 576 696 447.5 576.5 347 467 10 78.5 225.5 309.5 456.5 455
2500 576 696 447.5 576.5 347 467 10 78.5 225.5 309.5 456.5 455
3150 576 696 447.5 576.5 347 467 15 78.5 225.5 309.5 456.5 505


Connection
locking device cabinet door open hole
locking device cabinet door open hole


Cotoff function
1.Power supply changeover:
Main power supply changeover to standby power.
2.Changeover,reverse:
Changeover between two load equipment.(Emergency standby motor)Reversion by two phases changeover.
3.Bypass circuit:
Full bypassing isolates the equipment From upstream and downstream currents,(With one operation)
4.Cutoff+the grounding:
One operation of grounding and short circuit realizes the isolation(*)(Ue＞Ac)
※General cutoff function meets with the standards of IEC947 and GB/T14048.
Published: 2010/6/24 14:20:49     Views: 2649 PrintClose
