JX type floor standing cabinet | Wenzhou Jinxin Electric Co.,Ltd.

Features

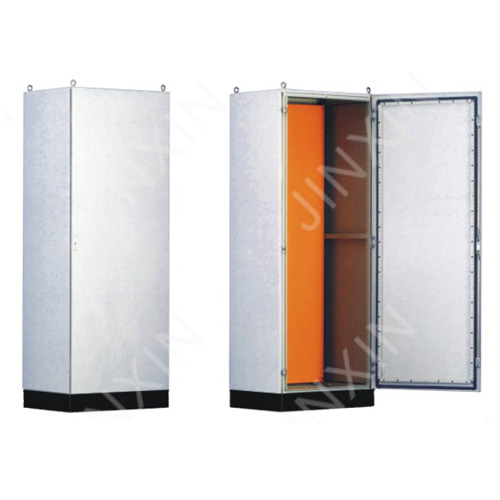

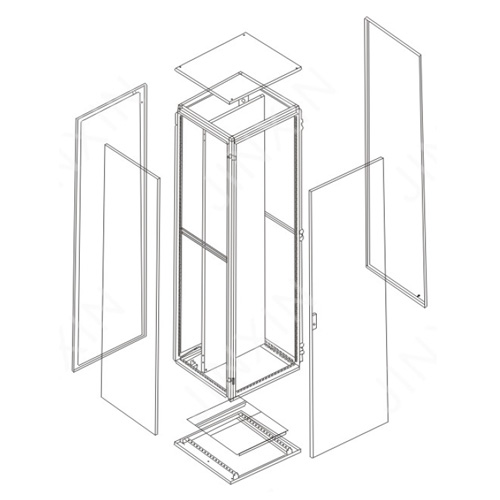

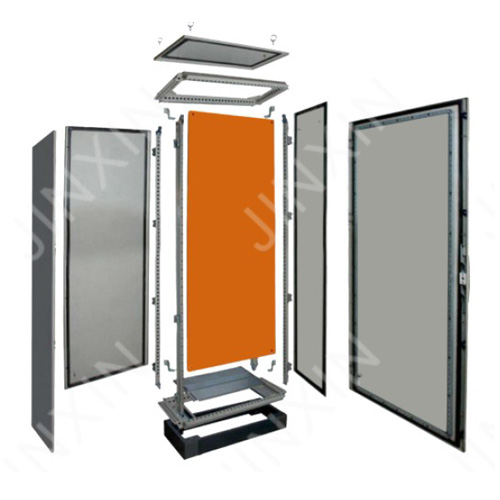

JXHE type floor standing cabinet is supplied without side panels designed for housing the protection and control low-voltage devices, for electrical distribution in the industrial sectors.

Standard configuration

Paint finish epoxy polyester powder coating textured finish

Color:RAL7032RAL7035 RAL2000

Profile:9-fold profile

Material: cold rolling steel

Thickness: Front Door:2.0Mm, Rear panel:1.5mm,Mounting Plate:2.0mm zinc coated steel or RAL2000 color.

4 rings and lifting eyebolts

Protection degree IP55

Impact resistance:IK 10

Selection Table

Part Number	No. of Doors	Dimensions (wxhxd)
JXHE-601860	1	600x1800x600
JXHE-801840	1	800×1800×400
JXHE-801850	1	800×1800×500
JXHE-801860	1	800x1800x600
JXHE-101840	1/2	1000x1800x400
JXHE-101850	1/2	1000×1800×500
JXHE-101860	1/2	1000×1800×600
JXHE-602040	1	600×2000×400
JXHE-602050	1	600x2000x500
JXHE-602060	1	600×2000×600
JXHE-802040	1	800×2000×400
JXHE-802050	1	800×2000×500
JXHE-802060	1	800x2000x600
JXHE-102040	1/2	1000×2000×400
JXHE-102050	1/2	1000×2000×500
JXHE-102060	1/2	1000×2000×600
JXHE-121840	2	1200x1800x400
JXHE-121850	2	1200×1800×500
JXHE-121860	2	1200×1800×600
JXHE-122040	2	1200×2000×400
JXHE-122050	2	1200×2000×500
JXHE-122060	2	1200×2000×600
JXHE-122080	2	1200×2000×800
JXHE-102080	1/2	1000×2000×800
