JX type mount enclosure (IP66)
金鑫图2
金鑫图1
金鑫图2
金鑫图1
JX type mount enclosure (IP66)
Contact Us
Features

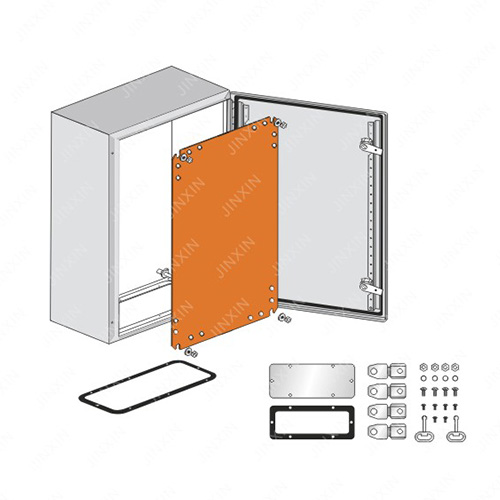

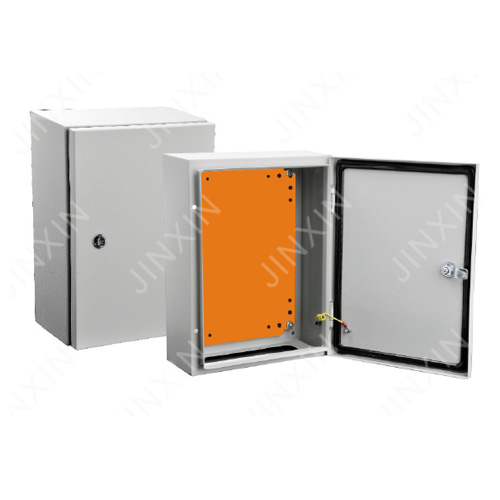

JX type wall mount enclosure (lP66) is designed toaccommodate various types of switchgear and control gearassemblies to suit a variety of electricalinstalations incommercial and light industrial premises. They are designedfor outdoor applications up to lP66.


Supply include:

Enclosure and door, mounting plate, lock system, cable gland plate, sealing gasket and fixing accessories.

Standard configuration

Paint finish epoxy polyester powder coating textured finish Color:RAL7032,RAL7035,RAL2000, etc.

Protection degree:IP66,IP65/NEMA4X

Against mechanical impacts:IK 10

Mounting plate: Zinc-coated steel or RAL2000 orange color

Advantages:

-Option to change the opening direction

-The anti-corrosion coating prevents from rust forming

-Supplied with metal plate for fixing the electrical devices

-Locking mechanism which prevents from free access to the electrical materials mounted in the board




Overall and mounting dimensions(mm)


Selection Table

CAT. NO.

H

W

D

No. of lock

Gland open

M. P size

JX2-215

200

200

150

1

A

150x150

JX2-2515

250

200

150

1

A

200x150

JX2-315

300

200

150

1

A

250x150

JX2-320

300

200

200

1

A

250x150

JX25-315

300

250

150

1

B

250x200

JX25-320

300

250

200

1

B

250x200

JX25-325

300

250

250

1

B

250x200

JX3-315

300

300

150

1

B

250x250

JX3-320

300

300

200

1

B

250x250

JX3-325

400

300

250

1

C

350x250

JX3-415

400

300

150

1

C

350x250

JX3-420

400

300

200

1

C

350x250

JX3-425

400

300

250

1

C

350x250

JX3-430

400

300

300

1

C

350x250

JX4-415

400

400

150

1

C

350x350

JX4-420

400

400

200

1

C

350x350

JX4-425

400

400

250

1

C

350x350

JX4-430

400

400

300

1

C

350x350

JX3-515

500

300

150

1

C

450x250

JX3-520

500

300

200

1

C

450x250

JX3-525

500

300

250

1

C

450x250

JX3-530

500

300

300

1

C

450x250

JX4-515

500

400

150

1

C

450x350

JX4-520

500

400

200

1

D

450x350

JX4-525

500

400

250

1

D

450x350

JX4-530

500

400

300

1

D

450x350

JX5-520

500

500

200

1

D

450x450

JX5-525

500

500

250

1

D

450x450

JX5-530

500

500

300

1

D

450x450

JX4-615

600

400

150

2

C

550x350

JX4-620

600

400

200

2

D

550x350

JX4-625

600

400

250

2

D

550x350

JX4-630

600

400

300

2

D

550x350

JX5-620

600

500

200

2

C

550x450

JX5=625

600

500

250

2

D/E

550x450

JX5-630

600

500

300

2

D/E

550x450

JX6-615

600

600

150

2

C

550x550

JX6-620

600

600

200

2

D

550x550

JX6-625

600

600

250

2

D/E

550x550

JX4-730

700

400

300

2

D

650x350

JX5-715

700

500

150

2

C

650x450

JX5-720

700

500

200

2

D

650x450

JX5-725

700

500

250

2

E

650x450

JX5-730

700

500

300

2

E

650x450

JX6-720

700

600

200

2

D

650x550

JX6-725

700

600

250

2

E

650x550

JX6-730

700

600

300

2

E

650x550

JX6-820

800

600

200

2

D

750x550

JX6-825

800

600

250

2

E

750x550

JX6-830

800

600

300

2

E

750x550

JX8-820

800

800

200

2

D

750x750

JX8-825

800

800

250

2

E

750x750

JX8-830

800

800

300

2

E

750x750

JX6-1020

1000

600

200

2

D

950x550

JX6-1025

1000

600

250

2

E

950x550

JX6-1030

1000

600

300

2

E

950x550

JX7-1020

1000

700

200

2

D

950x650

JX8-1020

1000

800

200

2

D

950x750

JX8-1025

1000

800

250

2

F

950x750

JX8-1030

1000

800

300

2

F

950x750

JX10-1025

1000

1000

250

3

G

950x950

JX10-1030

1000

1000

300

3

G

950x950

JX6-1220

1200

600

200

2

D

1150x550

JX6-1225

1200

600

250

2

E

1150x550

JX6-1230

1200

600

300

2

E

1150x550

JX8-1220

1200

800

200

2

E

1150x750

JX8-1225

1200

800

250

2

E

1150x750

JX8-1230

1200

800

300

2

E

1150x750

JX10-1225

1200

1000

250

3

G

1150x950

JX10-1230

1200

1000

300

3

G

1150x950

JX12-1225

1200

1200

250

3

G

1150x1150

JX12-1230

1200

1200

300

3

G

1150x1150




Description


The JXremoveable -chassis is used to installin the JX enclosure for circuitbreakers inside.The chassis cover is 40mm-85mm big, made of sheet steel in 1.2mm thick, by using the standard 35mm DINrails inside to adjust the distance.

Epoxy thermosetting powder coating texturrd finish,color in RAL 7032 & RAL 7035.

Selection Table

Model

H×W×D

No. of lock

NO. of breaks

JX-chassis:3-420

400x300x200

1

2row*10P

JX-chassis:4-520

500x400x200

1

3row*15P

JX-chassis:4-620

600x400x200

2

3row*15P

JX-chassis:5-720

700x500x200

2

4row*21P

JX-chassis:5-725

700x500x250

2

4row*21P

JX-chassis:6-820

800x600x200

2

4row*26P

JX-chassis:6-825

800x600x250

2

4row*26P

JX-chassis:6-830

800x600x300

2

4row*26P

JX-chassis:6-1025

1000x600x250

2

6row*26P

JX-chassis:6-1030

1000x600x300

2

6row*26P

JX-chassis:8-1030

1000x800x300

3

6row*38P

JX-chassis:8-1230

1200x800x300

3

6row*38P
